Sliding Rail Kit
Sliding Rail Kit
Extend your DexArm's work range 5X.

Want to get a bigger moving area? No problem! After putting DexArm on the linear rails, you will get a much bigger moving area to create something you have never seen before.

USD
Shipping calculated at checkout.

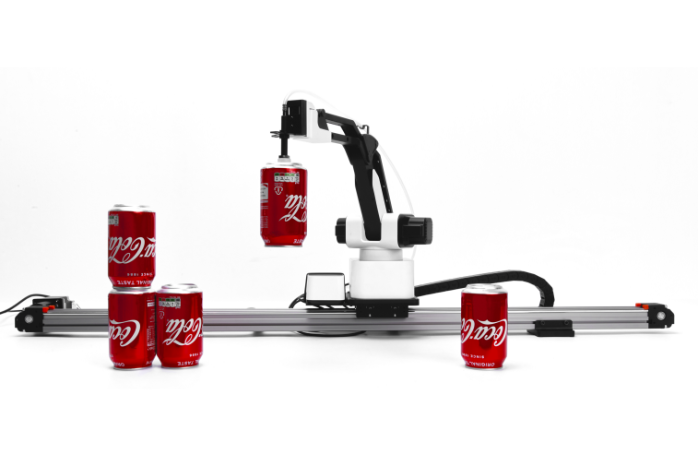

Make DexArm Go Farther
Move longer, have more fun.
Large Work Range
This sliding rail extends DexArm working area in horizontal direction, provides DexArm with more than 5 times the original working space.
High Precision
It is an industrial-grade linear sliding rail with 0.1mm accuracy. The extraordinary stability and smooth movement make it qualified for delicate works, such as laser engraving, writing/drawing and even 3D printing.
Powerful Motor
The high-power stepper motor empowers the sliding rail with a payload of over 5kg and a working speed of up to 250mm/s.
Videos

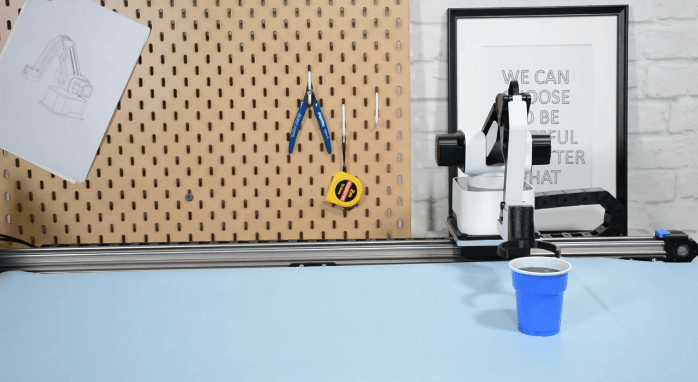

Sliding rail kit demo - robot waiter
Specs
General
Physical Length
1250 mm
Effective Length
1000 mm
Power Input
12V/2A
Max Speed
250 mm/s
Payload
5 kg
Dimension
1250 x 30 x 10mm
Weight
5kg
FAQs
Is it complex to install the sliding rail?
Not at all. We have detailed user manual and video tutorial for your reference.
What's the precision of the sliding rail?
The moving precision is 0.1mm.
Can I do 3D printing with the sliding rail?
You can use the sliding rail with pen holder module, laser module and pneumatic module. Currently it doesn’t support 3D printing.
How to integrate the sliding rail into my existing project?
Just like controlling DexArm, you can use G-code commands to control the sliding rail. Please check our online API here.
In The Box
1
x
Linear Rail
1
x
Drag Chain
2
x
Base Block
1
x
Motor Cage
1
x
Coupling
1
x

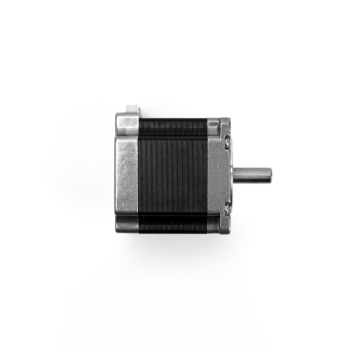

Step Motor
1
x
DexArm Board
1
x
Air Pump Box Board
1
x
1.5m Y Power Splitter
1
x
1.5m Motor Cable
1
x

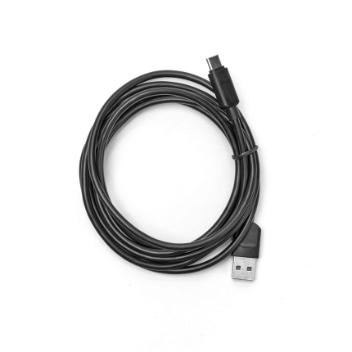

1.5m USB-C Cable
1
x
Tool Kit
2
x
Drag Chain Plate
1
x

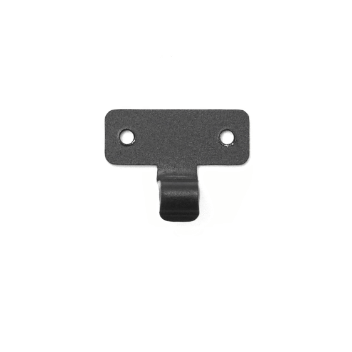

Hook
1
x
Elastic Rubber Ring
1
x
Mount Plate
